Step 1: Determine the Dimensions

Determine the dimensions of the space you would like to heat, including the length width and height. We recommend you review the diagram below to determine which heaters and how many would work best in your desired area.

Heat Coverage

Mounting Height

Product Options

5' x 5'

6' to 7'

﻿C-15﻿

﻿SL-16﻿

﻿W-15﻿

6' x 6'

7' to 8'

﻿C-20﻿

﻿W-20﻿

7' x 7'

7' to 8'

﻿CD-30﻿

﻿SL-24﻿

﻿WD-30﻿

7' x 8'

7' to 8'

﻿C-26﻿

8' x 8'

7' to 9'

﻿C-30﻿

﻿SL-30﻿

﻿W30﻿

10' x 10'

8' to 10'

﻿C-40﻿

﻿SL-40﻿

﻿W-40﻿

8' x 10'

8' to 10'

﻿CD-40﻿

WD-40

10' x 10'

8' to 10'

﻿CD-52﻿

﻿WD-52﻿

11' x 11'

8' to 12'

﻿CD-60﻿

﻿WD-60﻿

Step 2: Choose the Correct Heater

Once you have determined which models suit your technical requirements, determine which will work both functionally and aesthetically for your space. Read more about each Infratech line by clicking on the links below.

Jump to:

﻿W Series﻿

﻿Single Element Heaters﻿

﻿WD Series﻿

﻿Single Element Heaters﻿

﻿SL Series﻿

﻿Slimline Single Element Heaters﻿

﻿C Series﻿

﻿Single Element Heaters﻿

﻿CD Series﻿

﻿Dual Element﻿

C Series Heaters

Accessory Compatibility:

Compatible

﻿Custom Controls﻿
﻿ON/OFF Control﻿
﻿Flush Mount﻿
﻿Wall/Ceiling Mount﻿

NOT Compatible

Duplex Controls

Once you have determined which models suit your technical requirements, determine which will work both functionally and aesthetically for your space. Read more about each Infratech line by clicking on the links below.

infratech w series installed by a pool at twilight

C15

1500 Watts

Heat Coverage: 5' x 5'

Mounting Height: 6' to 7'

Length: 33"

﻿PURCHASE THE C15﻿

C20

2000 Watts

Heat Coverage: 6' x 6'

Mounting Height:7' to 8'

Length: 39"

﻿PURCHASE THE C20﻿

CD Series Heaters

Accessory Compatibility:

Compatible

﻿Custom Controls﻿
﻿ON/OFF Control﻿
﻿Duplex Control﻿
﻿Flush Mount﻿
﻿Wall/Ceiling Mount﻿

With the same low profile of the C series, Infratech's CD series is offers the same streamlined look and indoor/outdoor application, with higher wattage options. Features like floating mounts with inset mounting brackets combine a sleeker profile with concentrated heat output, for optimal warmth and sty

infratech cd series heater installed on a balcony in a desert house

CD30

3000 Watts

Heat Coverage: 7' x 7'

Mounting Height: 7' to 8'

Length: 33"

﻿PURCHASE THE CD30﻿

CD40

4000 Watts

Heat Coverage: 8' x 1'

Mounting Height:8' to 10'

Length: 39"

﻿PURCHASE THE CD40﻿

CD52

5200 Watts

Heat Coverage: 10' x 10'

Mounting Height: 8' to 10'

Length: 48"

﻿PURCHASE THE CD50﻿

CD60

6000 Watts

Heat Coverage: 11' x 11'

Mounting Height: 8' to 12'

Length: 61.25"

﻿PURCHASE THE CD60﻿

SL Series Heaters

Accessory Compatibility:

Compatible

﻿Custom Controls﻿
﻿ON/OFF Control﻿
﻿Wall/Ceiling Mount﻿

NOT Compatible

Duplex Controls
Flush Mount

Infratech’s SL Series Slimline heaters have been designed with a clean, modern silhouette, narrow profile and low clearance requirements. Slimline heaters add designer appeal to any ceiling or wall mount applications. The SL series comes in a variety of wattages and can be mounted at heights ranging from 7-11 ft. SL series heaters are ideal for adding warmth to any seating area like pergolas, gazebos, or cabanas because the heaters virtually disappear into the surrounding décor. Available in durable anodized aluminum housing finishes, Silver bronze and black.

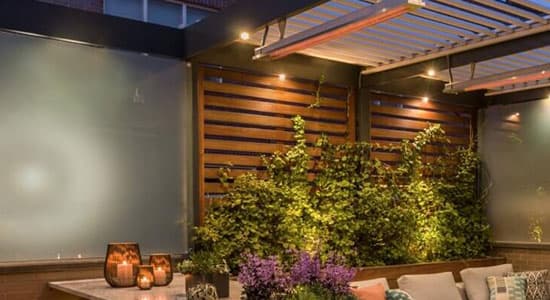

infratech sl series installed in a patio garden

SL16

1600 Watts

Heat Coverage: 5' x 5'

Mounting Height: 6' to 7'

Length: 29.5"

﻿PURCHASE THE SL16﻿

SL24

2400 Watts

Heat Coverage: 7' x 7'

Mounting Height:7' to 8'

Length: 42.5"

﻿PURCHASE THE SL24﻿

SL30

3000 Watts

Heat Coverage: 8' x 8'

Mounting Height: 7' to 9'

Length: 63.5"

﻿PURCHASE THE SL30﻿

SL40

4000 Watts

Heat Coverage: 10' x 10'

Mounting Height: 8' to 10'

Length: 63.5"

﻿PURCHASE THE SL40﻿

 W Series Heaters

Accessory Compatibility:

Compatible

﻿Custom Controls﻿
﻿ON/OFF Control﻿
﻿Wall/Ceiling Mount﻿
﻿Flush Mount﻿

NOT Compatible

Duplex Controls

Infratech’s classic W Series Single element heaters are ideal for most basic outdoor installations. These low-profile heaters feature low clearance requirements for a pleasing streamlined look. These single element heaters come in a variety of wattages and can be mounted at heights ranging from 7ft to 11ft. Our W series single element heaters operate at a lower wattage than some of our other product series making them ideal for use in properties that have minimal power allotment.

infratech w series installed on a porch roof at twilight

W15

1500 Watts

Heat Coverage: 5' x 5'

Mounting Height: 6' to 7'

Length: 29.5"

﻿PURCHASE THE W15﻿

W20

2000 Watts

Heat Coverage: 6' x 6'

Mounting Height:7' to 8'

Length: 42.5"

﻿PURCHASE THE W20﻿

W30

3000 Watts

Heat Coverage: 8' x 8'

Mounting Height: 7' to 9'

Length: 63.5"

﻿PURCHASE THE W30﻿

W40

400 Watts

Heat Coverage: 10' x 10'

Mounting Height: 8' to 10'

Length: 61.25"

﻿PURCHASE THE W40﻿

 WD Series Heaters

Accessory Compatibility:

Compatible

﻿Custom Controls﻿
﻿ON/OFF Control﻿
﻿Duplex Control﻿
﻿Wall/Ceiling Mount﻿
﻿Flush Mount﻿

Infratech’s High powered WD Series Dual Element heaters are our customers most popular choice. WD Series heaters provide more concentrated heat making them ideal for recessed applications, premium outdoor heating applications and large scale coverage needs. They come in a variety of wattages and can be mounted in a range of heights from 7ft to 12ft. They are also compatible with our value control, the duplex stack switch which allows you to turn on and off each element independently effectively providing half power, full power capabilities.

infratech wd series installed in an outdoor kitchen

WD30

3000 Watts

Heat Coverage: 7' x 7'

Mounting Height: 7' to 8'

Length: 33"

﻿PURCHASE THE WD30﻿

WD40

4000 Watts

Heat Coverage: 8' x 10'

Mounting Height:8' to 10'

Length: 39"

﻿PURCHASE THE WD40﻿

WD60

6000 Watts

Heat Coverage: 11' x 11'

Mounting Height: 8' to 12'

Length: 61.25"

﻿PURCHASE THE WD60﻿

Step 3: Select Your Controls

Selecting the proper Infratech controls can help you maximize comfort, customize convenience, and optimize energy efficiency from your Infratech electric heating system. Infratech has a proven track record when it comes to the engineering, design and manufacturing required to create standard and custom control packages of outstanding quality. Whether you’re heading a small intimate patio or a large commercial outdoor area, Infratech outdoor control systems can bring comfort and convenience to any space.

Types of Heat Control

Value Controls

Ready Made

﻿Learn More About Value Controls﻿

Best no-fuss solution for any budget. Each available in flush, surface, or weather proof housing.

Solid State

Custom Controls

﻿Learn More About Custom Controls﻿

Custom built to your project specifications: set up multiple heating zones, adjust intensity, and control heat by zone.

Home Management System

Custom Controls

﻿Learn More﻿

Integrate your heaters into your existing smart home management systems. Requires a 0-10 volt DC input.

Value Controls

All available in different configurations, including in-wall or surface mount options, with and without weather proof covers.

Simple Single On/Off

Simple on/off functionality for no-fuss control.

Not Timer Compatible.

Compatibility:For use with single element heaters.

﻿SHOP ON/OFF CONTROLS﻿

Duplex

Gives a Hi/Lo control options.

Not Timer Compatible.

Compatibility:For use with dual element heaters.

﻿SHOP DUPLEX CONTROLS﻿

﻿INF Regulators﻿

Gently cycles the heater off/on at regular intervals when not on full power.

Not Timer Compatible.

Compatibility:Single element heaters below 3,000 Watts.

﻿SHOP INF﻿﻿REGULATORS﻿

Contactor Panel

Pair with any 120 VAC on/off controls, including smart switches.

Timer Compatible.

Compatibility:All Infratech single and dual element heaters. Indoor only.

﻿Learn More﻿

﻿SHOP CONTACTOR PANEL﻿

Custom Controls

Universal Control Package

﻿Learn More﻿

Recommended for residential installation

Complete solution compatible with most 120V lighting controls.

Switch Compatibility

120V universal Slide Dimmer & Timer Included

Dimming

Purchase a Wi-Fi/Bluetooth® for dimming capability.

Smart Phone/Tablet Application

Purchase a Wi-Fi/Bluetooth® for this capability.

NEMA Rating

NEMA 4 Panel

Heater Compatibility

All dual and single element Infratech heaters

﻿Shop Universal Controls﻿

Home Management System

﻿Learn More﻿

Compatible with most smart home systems

Interfaces with a Third Party System, requires 0-10V Dc Input Signal

Switch Compatibility

Programmed through Third Party System

Dimming

Programmed through Third Party System

Smart Phone/Tablet Application

Programmed through Third Party System

NEMA Rating

NEMA 3 Panel

Heater Compatibility

All dual and single element Infratech heaters

﻿Shop Home Mangement System﻿

Solid State Controls

﻿Learn More﻿

Recommended for residential installation

Ideal for complex applications & using multiple heaters to set up zones

Switch Compatibility

Infratech Analog Controllers Only

Dimming

No dimming capability

Smart Phone/Tablet Application

Not smart phone/tablet compatible

NEMA Rating

NEMA 12 Analog/NEMA 4 Panel

Heater Compatibility

All dual and single element Infratech heaters

﻿Shop Solid State Controls﻿

Step 4: Choose your Mounting Options

Wall Mount

Compatibility: All Infratech Models

Ideal for directing heat outward into a room.

No additional purchase required.

Ceiling Mount

Compatibility: All Infratech Models

Ideal to direct heat downward, over a seating or dining area.

No additional purchase required.

Pole Mount

Compatibility: W & WD Heaters

Ideal for rooftops with no structure, such as a trellis or patio.

﻿Additional Purchase Required﻿

Flush Mount

Compatibility: W & WD Heaters

Ideal for high-end venues and luxury residential applications.*

﻿Additional Purchase Required﻿

*Ceiling must be flat and horizontal. Cannot be mounted on a slope or to a pitched ceiling.
